Digital Display Packaging Impact Falling Testing Machine , Single Wing

Brand Name : ZL

Model Number : ZL-9002B

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 40 sets / month

Delivery Time : 4-7 work days

Packaging Details : Packaging Falling Testing Machine is packaged within wooden case.

Product name : Single wing Packaging Impact Falling Testing Machine

Dropping height : 300mm-1500mm

Dropping deviation : ±10mm

Deviation of dropping horizon : less than 1°

Weight : 550kg

Power : AC380V,50Hz

Contact Now

Digital Display Packaging Impact Falling Testing Machine, Single Wing

This electronic drop tester is designed to evaluate the damage degree and impact resistance of packages during transportation. It utilizes the free-drop method to test package surfaces, edges, and angles.

Primary Function

Tests the damage degree when packages are dropped and evaluates impact resistance during transportation using the free-drop method for surfaces, edges, and angles.

Package Weight vs. Dropping Height

Weight Range (Lbs)	Weight Range (Kg)	Free-drop Height (Inch)	Free-drop Height (mm)
0 - 21	0 - 10	30	760
21 - 41	10 - 19	24	610
41 - 61	19 - 28	18	460
61 - 100	28 - 45	12	310
100 - 150	45 - 68	8	200

Control Chamber Operation

Electromagnet control system for dropping swing operation
Automatic return function with electric dropping and electro-motion rising
Digital setup for testing height
Compliant with test standards: GB/T4857.5, ISO 2248, JIS Z0202, ASTM D5276

Technical Parameters

Dropping Height	300mm - 1500mm
Display Method	Digital Display
Maximum Package Weight	60kg
Maximum Package Size	1000×700×1000mm (L×W×H)
Dropping Panel Size	1700×1400mm (L×W)
Swing Size	200×150×8mm
Dropping Deviation	±10mm
Dropping Horizon Deviation	Less than 1°
Outside Size	1700×1200×2500mm (L×W×H)
Chamber Size	350×350×1100mm (L×W×H)
Weight	550kg
Power	AC380V, 50Hz

Configuration

Outside Material: Advanced paint coat
Display: LCD display
Power System: Drive device (imported motor + speed reducer + Axel + upper and lower limitation + spring + electromagnet) + dropping device (dropping standard board + magnet + safety spacing push rod + automatic return back + digital alto-meter + encoder + hydraulic pressure buffering device)
Control System: Electromagnet sensor control with easy-to-operate interface and high degree automatic control
Safety Device: Upper and lower limitation device, automatic off-power device for electricity leakage
Accessories: Electric wire (1 piece), guarantee certificate (1 piece), operational manual (1 piece)

Digital Display Packaging Impact Falling Testing Machine , Single Wing

Product Tags:

paper test equipment

carton bursting tester

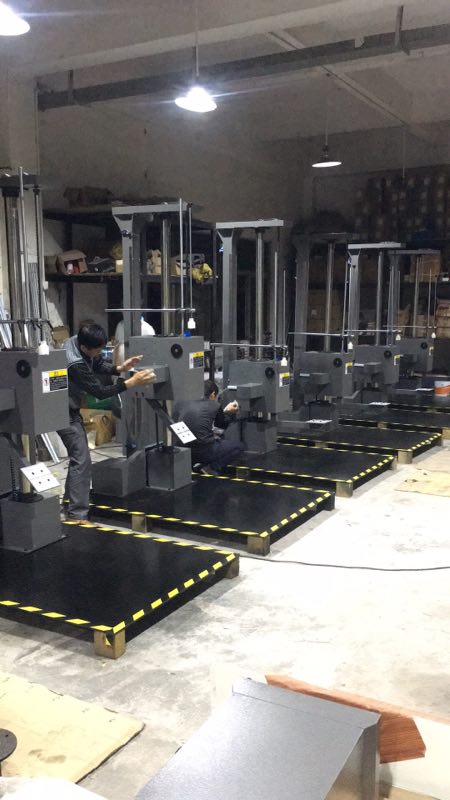

Digital Display Packaging Impact Falling Testing Machine , Single Wing Images
