Intelligent Automatic Rupture Strength Mullen Burst Testing Equipment For Paper Board

Brand Name : ZL

Model Number : ZL-9004

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100 set per month

Delivery Time : 7-10 days

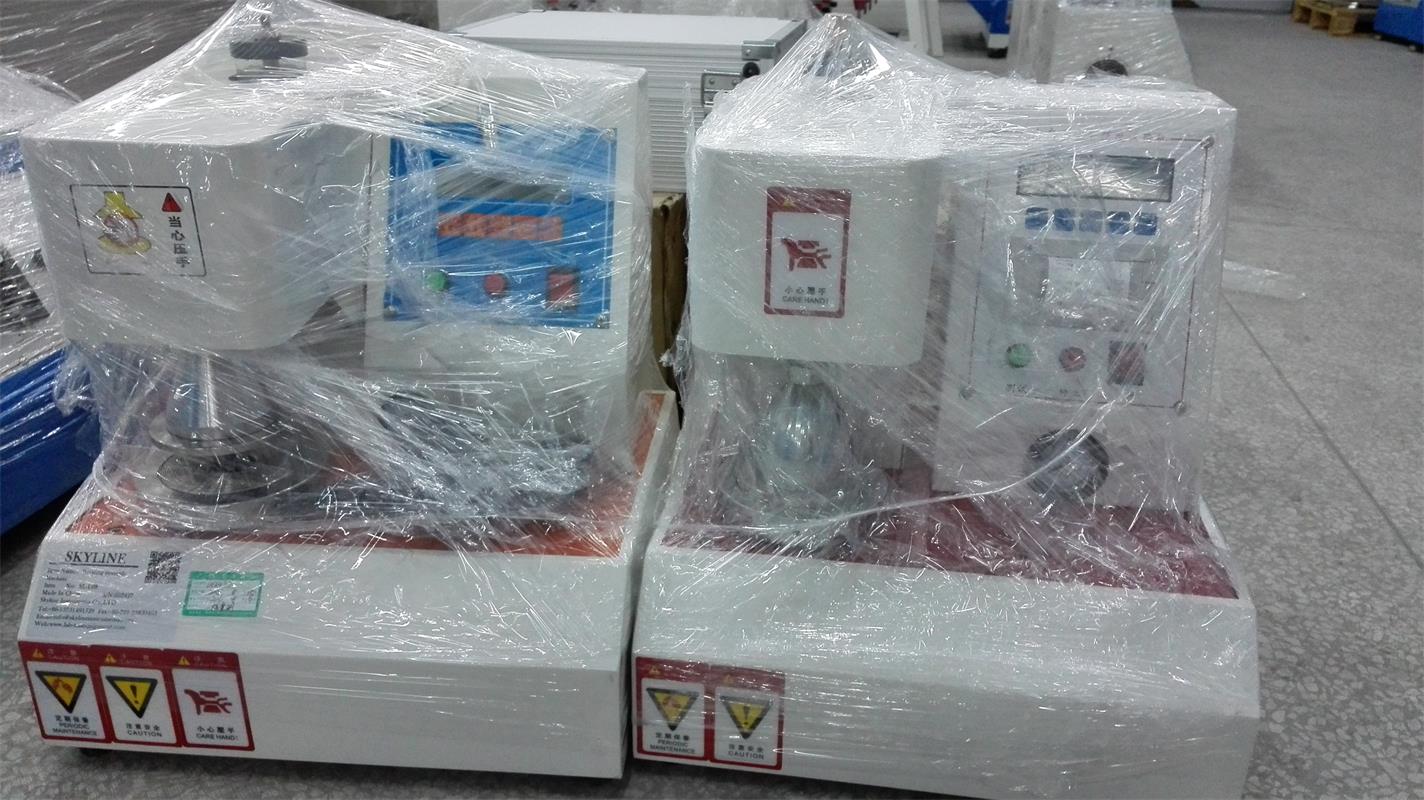

Packaging Details : Intelligent Automatic Rupture Strength Mullen Burst Testing Equipment For Paper Board is Packaged within wooden case

Power : 220v 50hz

Pressure Range : 250~5600kpa

Capacity : 0~100 Kg/ cm2 (0.1kg/cm2)

Accuracy : ± 0.5%

Speed of Compres : High Pressure 170± 10ml/min

Warranty : 12 month

Contact Now

Intelligent Automatic Rupture Strength Mullen Burst Testing Equipment For Paper Board

Tester summary:

Mullen burst strength tester is applied to test anti-rupture strength for raw paper, corrugated cardboard,

leather, cloth and synthetic leather.

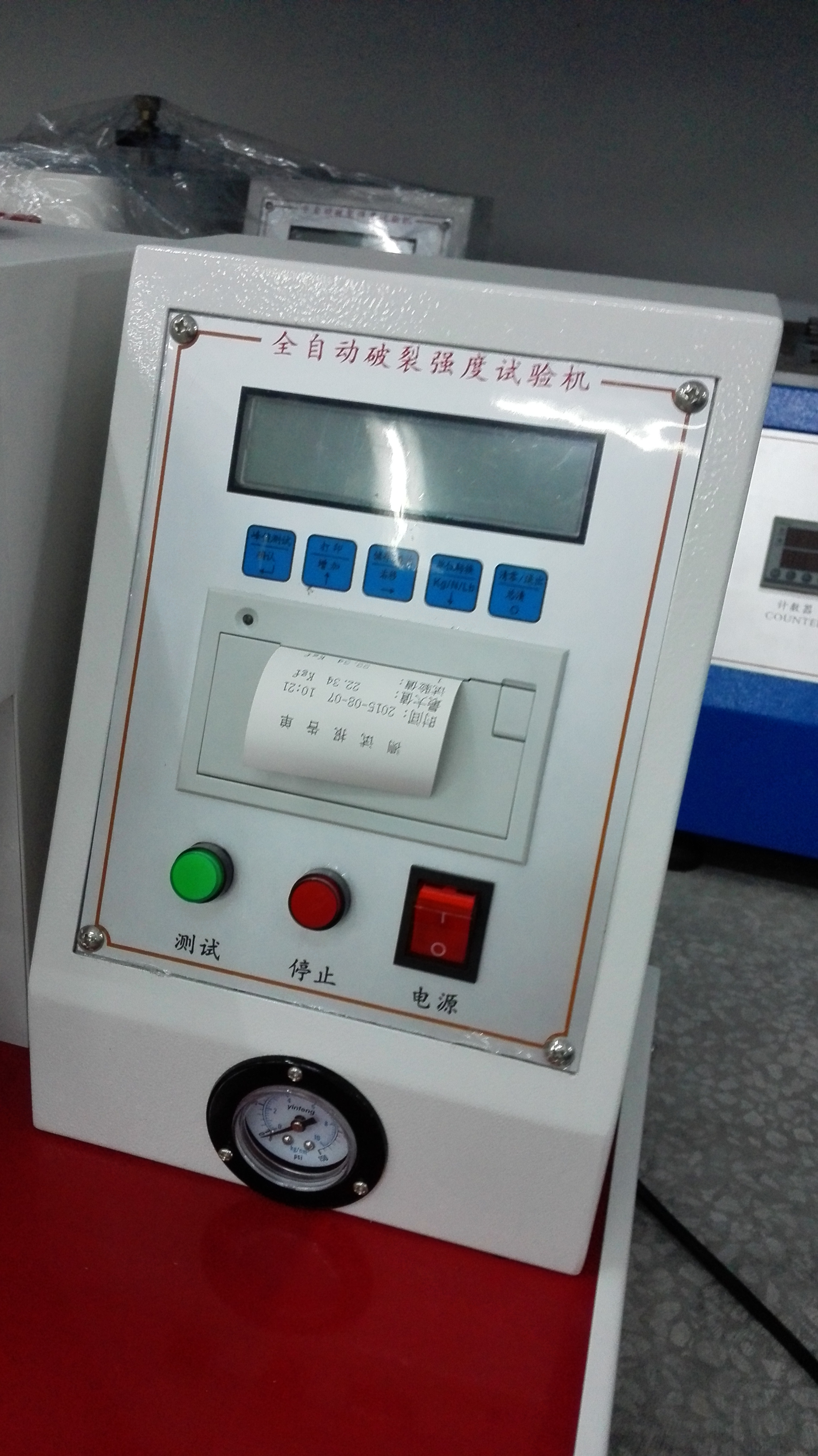

This tester is fully automatic-type rupture strength tester, Just put into the testing material, the tester

automatically detect, automatic testing, automatic hydraulic recoil and automatic computing, storage testing data and printing. It is an important tester for controlling quality of finished product and quality inspection.

Applicable industry:

Mullen burst strength tester applied to test the anti-breaking strength of boxes for packaging, which of

electronics, electrical appliances, wires, hardware, bicycles, handbags, food, footwear, clothing, furniture.etc.

Technical parameters:

Model	Mullen burst strength tester
Capacity (Optional)	High Pressure 0~100 Kg/ cm2 (0.1kg/cm2)
Unit	psi, kg/cm2
Accuracy	± 0.5%
Pressure Range	250~5600kpa
Speed of Compression	High Pressure 170± 10ml/min
Specimen Clamping Force	>690kpa
Oil	85% Glycerin; 15% Distilled Water
Sensing method	Pressure Transmitter
Indicating Method	Digital
Display	LCD
Material of the Ring	Stainless Steel SUS304
Opening in Upper Clamp	31.5 ± 0.05 mm Diameter
Opening in Lower Clamp	31.5 ± 0.05 mm Diameter
Motor	Anti-vibration Motor 1/4 HP
Dimension (L×W×H)	430×530×520 mm
Weight	Approx. 64 kg
Power	1 , AC220± 10%, 50 Hz
Power Capacity	120W
Standard	JIS-L1004, L1018, L1031, K6328, P8131, P8112,ASTM-D2210; TAPPIT403TS-63,ISO2759-2001; GB/T1539
