Wire Flame Resistant Cable Testing Machine ASTM D 5025-99 available

Brand Name : ZL

Model Number : ZL-1021

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 50 set per month

Delivery Time : 7-10 days

Packaging Details : Packaged within wooden case

Power : 220v / 380v

Standards : ASTM D 5025-99

Material : Sheet metal + plating

Cater lamp long : 0.90±0.03mm

Crater diameter : 0.90±0.03mm

Warranty : 12 month

Contact Now

Wire Flame Resistant Cable Testing Machine ASTM D 5025-99

Product Summary

The Cable and Wire Flame Resistant Testing Machine meets the requirements of UL1581-2001, including sections for uprightness burning and FT1 test, cable burning test, VW-1 burning test, burning test of electrical equipment wire, and horizontal specimen orientation/FT2 burning test.

Equipment Composition

Test machine + control system
High accuracy extended burning control system
Temperature testing system
Testing equipment and testing fixture
Burning air and flow control system

Testing Fixture Specifications

Model	Cable and wire flame resistant chamber
Main Fixtures	Test stand and burning torch
Test Stand	Stainless steel S304, Vertical and horizontal stand
Burning Torch	ASTM D 5025-99
Standard Power	Vertical torch: 500W, Horizontal torch: 225W
Crater Diameter	0.90±0.03mm
Crater Lamp Length	1.60±0.05mm
Height from Torch to Air Entrance	102mm
Torch Lamp Angle	Horizontal 90°, vertical 20° (Vertical axis remains on the vertical plane and keeps 20 degree in vertical direction)

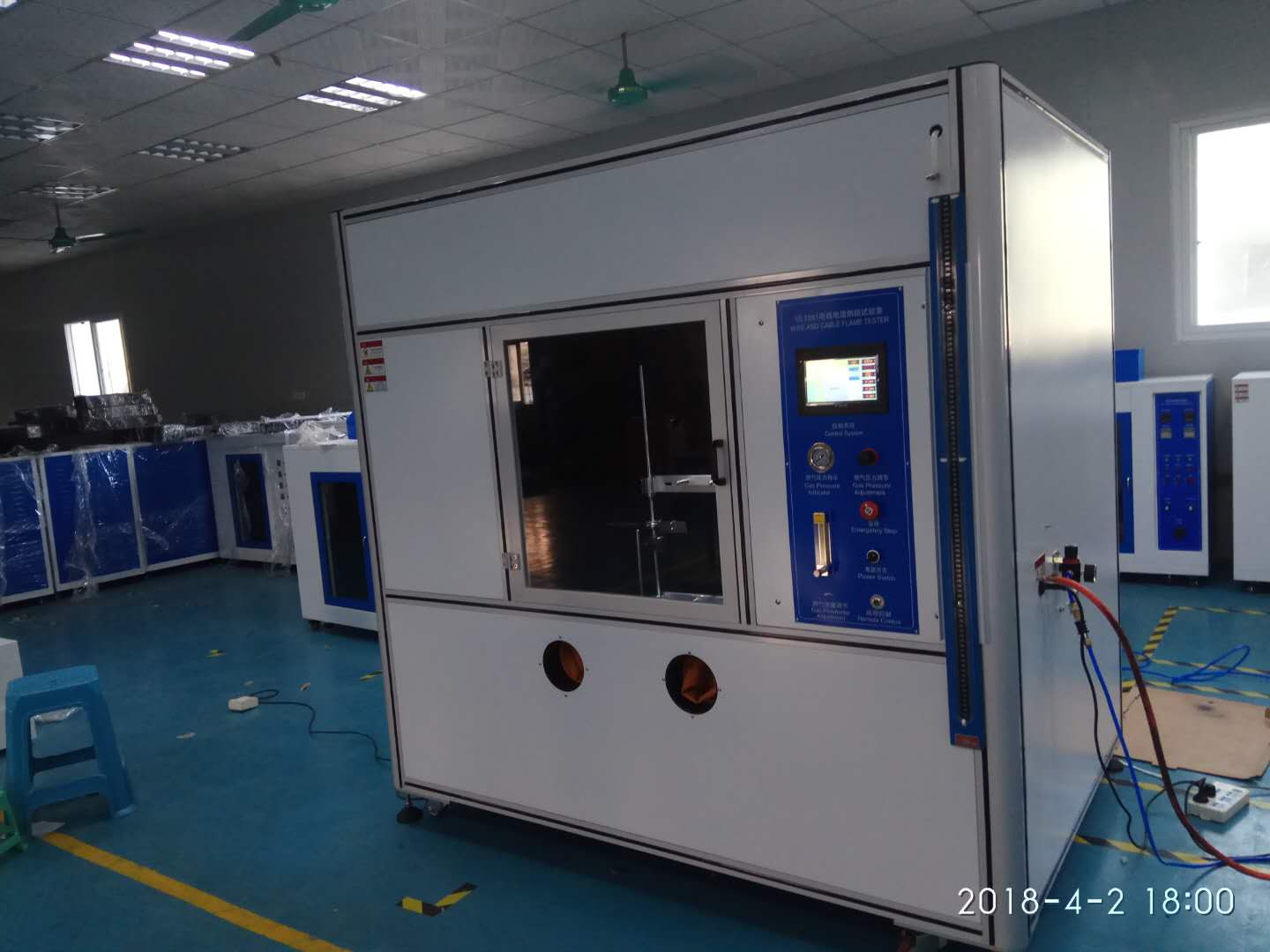

Test Chamber Features

Constructed from stainless steel with excellent appearance and rust corrosion resistance
Ventilation and smoke-releasing system located on top of chamber for exhaust gas removal (environmental processing systems not included)
Steel glass door on front for observation during testing
Operate panel located on right side of observation door
Chamber specification: 200X120X200(CM), Volume: 4.8m³

Control System

Two control options available:

Intelligent touch screen + PLC control for testing time, frequency, and extended time settings with high intelligence, menu-type operation, and accurate results
Time relay control model using traditional relay for testing time (0~999.9S), stop burning time (0~99.9s), burning frequency (1~9999), and extended time (0~999.9S)

Extended Control System

High accuracy extended burning control system (photographic control system) automatically records stopping burning time, eliminating manual recording to reduce testing tolerances.

Temperature Testing System

Thermal sensor (copper pipe and thermocouple) - Metallic copper pipe construction with high conductivity
K-type thermocouple with 0.5mm diameter stainless steel pipe coating
Intelligent PID temperature list matched with K-type thermocouple, indicating temperatures exceeding 1000℃

Burning Air and Air Flow Control System

Burning air: Methane (98% purity, verified by supplier certification, thermal number 998BTU/cubic feet, 37.1 per cubic meter mega joule)
Burning control system includes flow meter and pressure reducing valves
Flow meter: Calibrated by D3195 criterion with minimum 2% accuracy, flow scale 1000ml/min
Burning pressure reducing valves: 1 EA, air flow adjustable to 10 pound/cube inch
