Brand Name : ZL
Model Number : ZL-1018
Certification : ISO
Place of Origin : China
MOQ : 1 set
Price : Negotiable
Payment Terms : T/T, Western Union, L/C
Delivery Time : 7-10 Days
Packaging Details : Packaged within safety wooden case (fumigation free)
Material : Sheet metal + spray paint
Power : Electronic
Usage : Torsion Tester
Specimen Diameter : 0.1-1mm/1-3mm/3-10mm
Test speed : 30,60 ,90, 120m/min
Length of camping wire : 100- 300/300-500
Application : Wire and cable
Warranty : 12 month

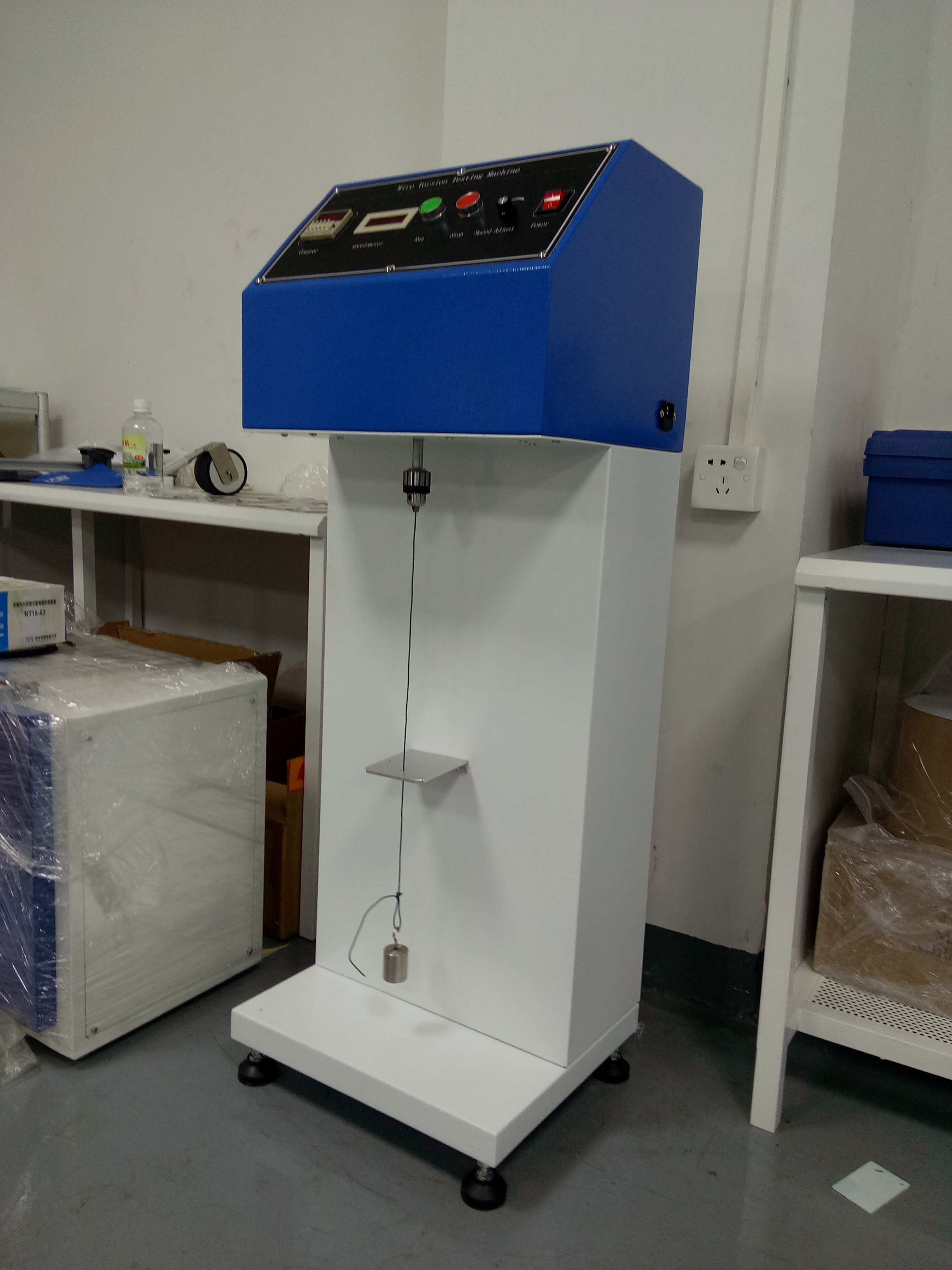

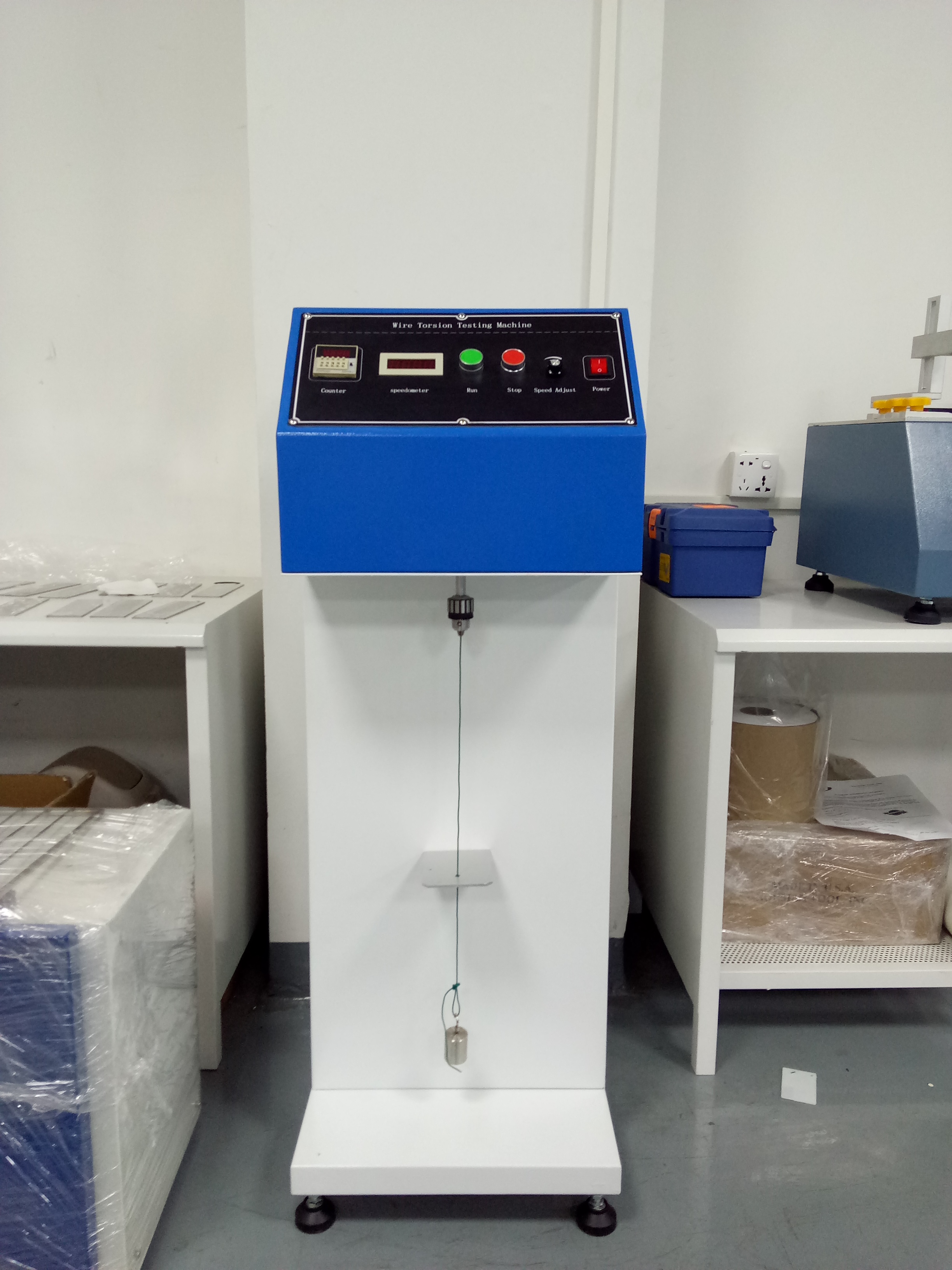

Digital Wire Torsion Testing machine for metal wire / cable
Specifications:
Wire Torsion Testing Machine Price mainly used to test the capacity of bearing deformation of the metal wires and other wire ropes whose diameter are φ 6~φ 20mm during the reversing. The test can show the surface defects of wire during the test process.

 Technical parameters:
| Range of specimen diameter | 0.1-1mm | 1-3mm | 3-10mm |
| Test speed | 60 ,90, 120m/min | 60, 90, 120m/min | 30, 60m/min |
| Length of camping wire (mm) | 100- 300 | 100- 300 | 300-500 |
| Maximum reading rotation circle | 999.9, The number of test circle blockades automatically after specimen fracturing | ||


FAQ
What's the warranty statement?
 ZhongLi warrants all the products manufactured by Zhongli to free from defects in material and workmanship under normal use of a period of 12 months or 36months after the date of the original purchase price if repair or replacement is not possible of practical, Zhongli warranty covers ONLY the product itself. ZhongLi will assume no liability for labor costs, installation costs, or other losses. Your warranty rights will be honored only when the product has been installed and used properly as deemed by ZhongLi , ZhongLi will not repair products damaged by improper use or faulty installation.

 What's the return policy?
 All order shipments leave our factory complete and in working order, customer must report and damage within 7days of receipt of order by sending digital photographs(.JPG) of damaged items. Customer must retain damaged merchandise,package and shipping containers until claim had been settled. Damage in transit is the sole responsibility of the carrier,and any claim beyond this 7days period will not be deemed valid by ZhongLi .

 How about in case of breakage?
 ZhongLi will accept returns for a refund within 30days of the shipment of your order. Please note
 exceptions bellow: Returns must be first acknowledged by ZhongLi PRIOR to return, Please contact the related salesman in charge. All packages sent to ZhongLi MUST have the initial sales invoice number issued and printed clearly on the outsite of package, A lack thereof will result in the item being immediately restocked and no credit or refund will be issued.All returns must be made in their original packaging with sufficient packing material. Modified or installed items will not
 be accepted for return.

 How about the after-sales service?
 24 hours around the clock & 12 months warranty, if need our engineers can provide door-to-door service
 Life-long maintenance service for the product
Thanks for your support to Zhongli !
|   |
