Lab Manual Type Small Rubber Platen Vulcanizing Press Equipment

Brand Name : ZL

Model Number : ZL-3022B

Certification : ISO, CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : D/A, D/P, Western Union, MoneyGram, T/T, L/C

Supply Ability : 50 sets per month

Delivery Time : 7~10 days

Packaging Details : Packaged in wooden case

Product name : Lab Manual Type Small Rubber Platen Vulcanizing Press Equipment

Platen size : 350*350mm

Press layer : Two

Power supply : 380V/ 440v 60hz

Heating : Electrical

Capacity : 10T

Contact Now

Lab Manual Type Small Rubber Platen Vulcanizing Press Equipment

Instruction:
Lab Manual Type Small Rubber Platen Vulcanizing Press Equipment is placed in the casting mold and clamped between the electric-heating flat plates to apply pressure and temperature, make the material

shaping, testing and serving as the basis for the ingredient of mass production.

Parameters:

Product Name	Lab Manual Type Small Rubber Platen Vulcanizing Press Equipment
Capacity	10T (Can be customize)
Temp. Range	Room temp. ~300℃
Temp. Controller	LED Indicator,press key set input, the value indicate output
Timer	LED display,time range 0.1S~99min~9.9hr
Heating type	Electrical Heating module
Hot pressure plate	300×300mm, 350*350mm
Cold pressure plate	300×300mm, 350*350mm
Distance of pressure plate	100mm
Pressure material	SKD chromium-molybdenum alloy
Pressure surface	Mirror chrome plated
Cooling temperature scope	Room temp. ~+5℃
Cooling type	Tap water cooling/compressor cooling water(optional)
Oil pressure system	The proportion hydraulic pressure current capacity loop circuit control system,the GPY oil pump driver high performance electroencephalographic matching high accuracy non resistance piston of oil cylinder carry out constant speed rate control mode, can preelection one, two times pressure and time.
Oil cylinder stroke	Max 200mm
Oil cylinder speed	11mm/s
Pressure gauge	0~350kg/sq.cm
power	10.6HP
Dimension W×D×H	1200×600×1500 mm
Power supply	AC380V,three phase 60hz
Weight	About 150 kg

Lab Manual Type Small Rubber Platen Vulcanizing Press Equipment

Product Tags:

rubber tensile testing machine

rubber testing equipments

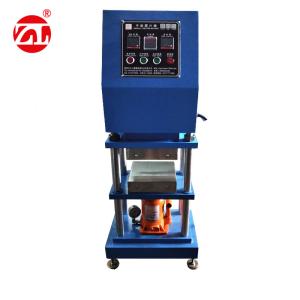

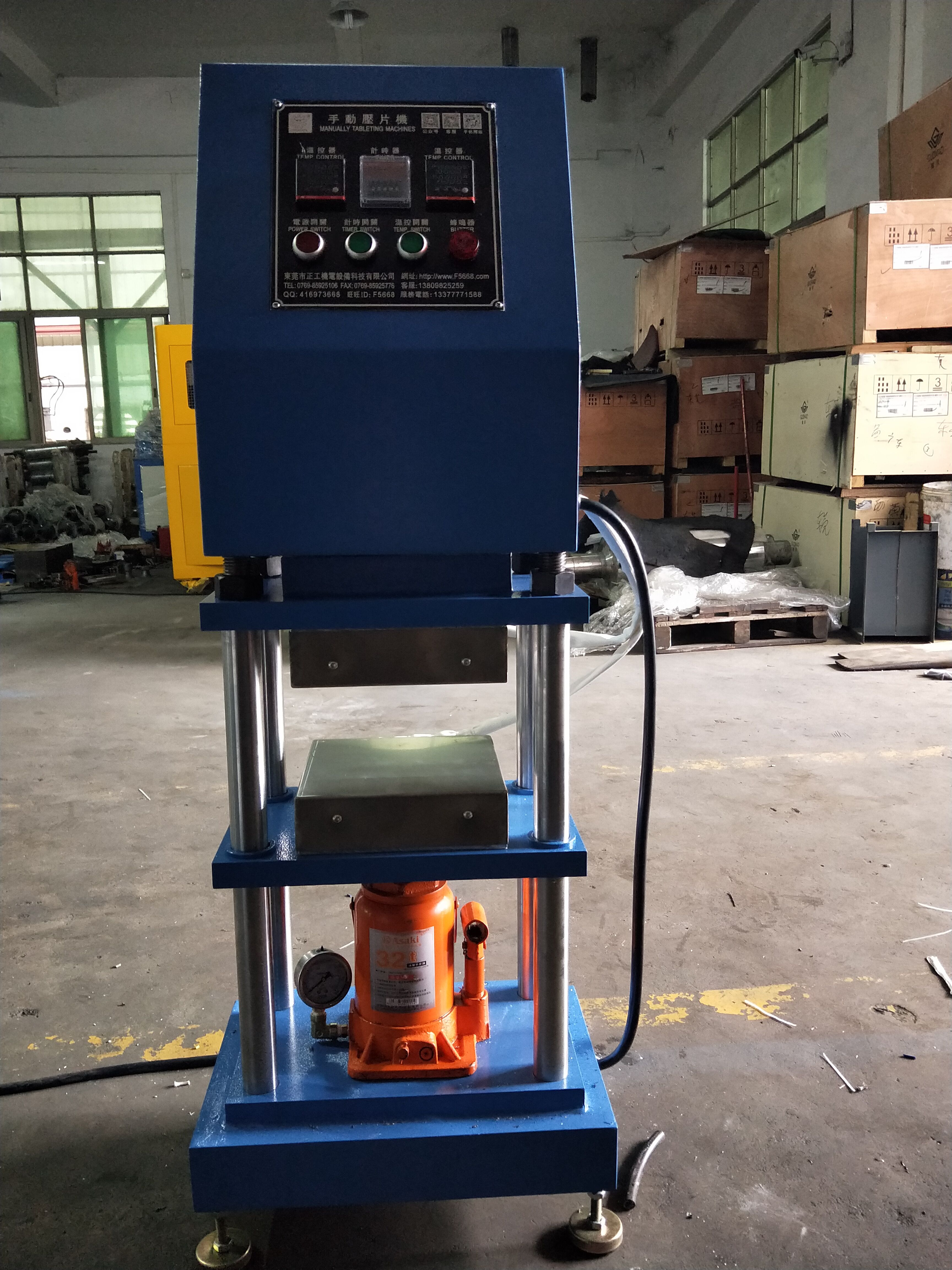

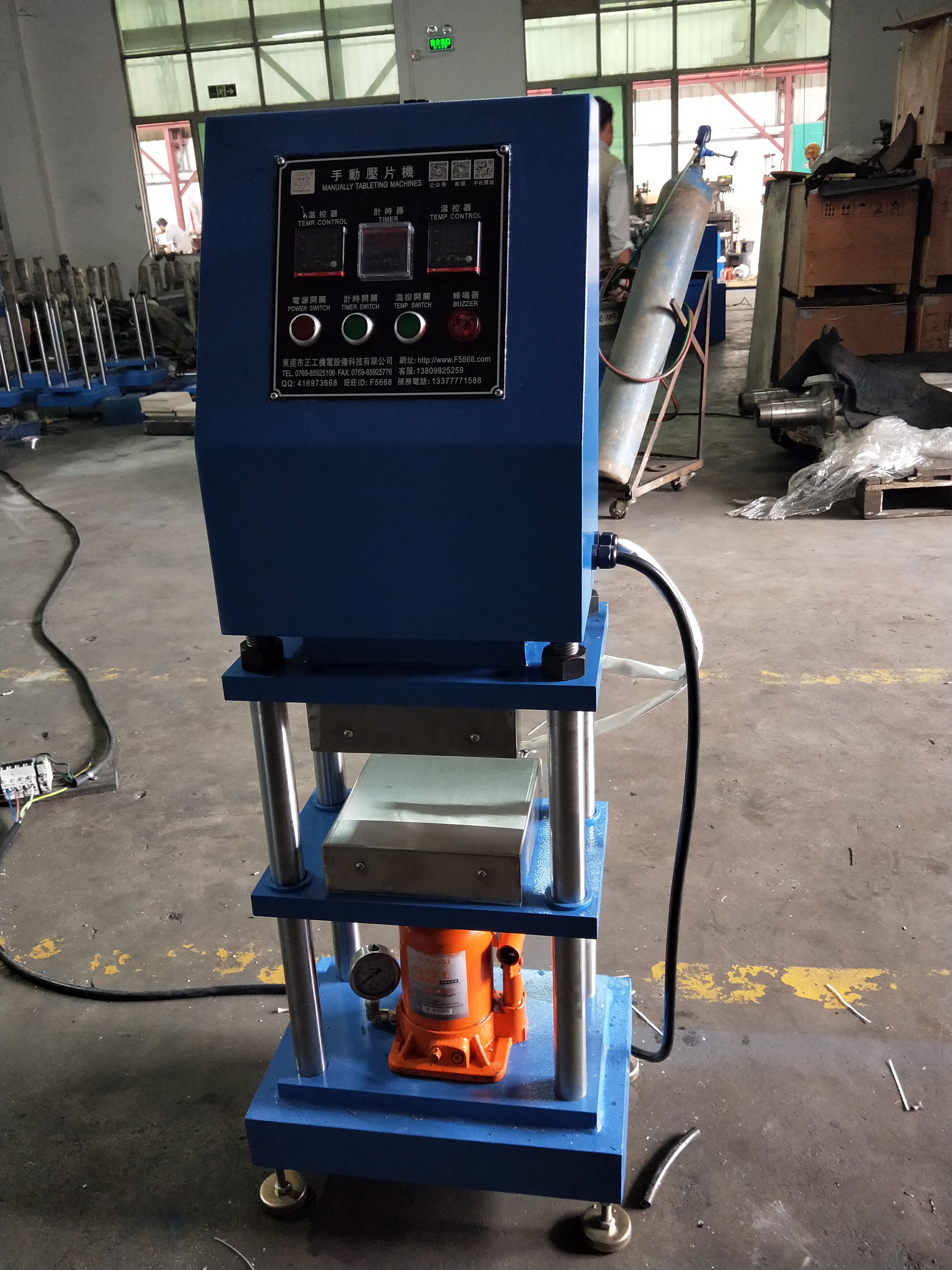

Lab Manual Type Small Rubber Platen Vulcanizing Press Equipment Images
